65Mn External Retaining Rings For Shafts

$0.01

≥1000
Piece/Pieces

Payment Type:

L/C,T/T,D/P,D/A,Paypal

Incoterm:

FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DDP,DDU,Express Delivery

Min. Order:

1000 Piece/Pieces

Transportation:

Ocean,Land,Air,Express

Port:

Shanghai,Ningbo

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Brand: LY

Supply Ability & Additional Information

Packaging: PE bags + cartons + pallets or customized

Productivity: 50 Ton/Month

Transportation: Ocean,Land,Air,Express

Place of Origin: Kusnhan, China

Supply Ability: 50 Ton/Month

HS Code: 731822

Port: Shanghai,Ningbo

Payment Type: L/C,T/T,D/P,D/A,Paypal

Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DDP,DDU,Express Delivery

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: PE bags + cartons + pallets or customized

Picture Example:

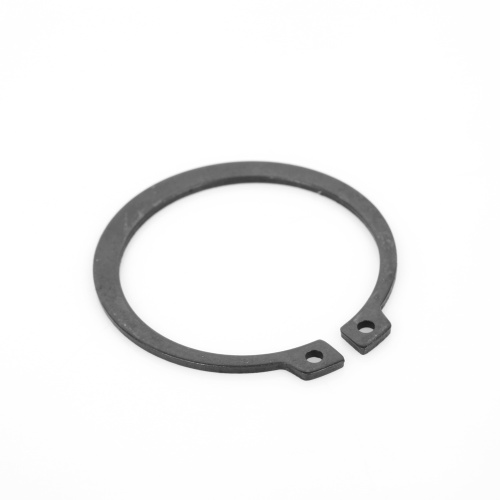

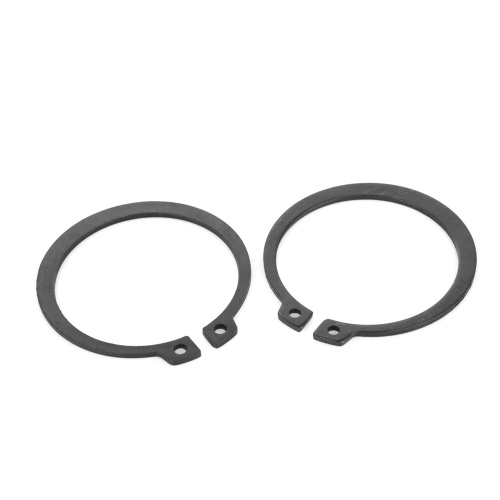

65Mn External Retaining Rings For Shafts

Materials:
Spring steel EN 10132 - 1/4 (DIN 17222)
from 3 to 27 mm: strip C60S (C60)
from 28 to 300 mm: wire C75S (C75)

Martensitic stainless steel X39CrMo17 (W.N. 1.4122) (UNI EN 10088)
from 4 and 7 mm: strip (until stock is exhausted, then in AISI 316)
from 9 to 27 mm: strip
from 28 to 100 mm: wire

Austenitic stainless steel A4 – AISI 316 L (W.N. 1.4404)
from 3 to 27 mm: strip

Austenitic stainless steel AISI 301 (W.N. 1.4310)
from 28 to 100 mm: wire

Hardness:
Spring steel EN 10132 - 1/4 (DIN 17222)
from 3 to 48 mm: HV 470 - 580, HRC 47 - 54
from 50 to 200 mm: HV 435 - 530, HRC 44 - 51
from 205 to 300 mm: HV 390 - 470, HRC 40 - 47

Martensitic stainless steel X39CrMo17 (W.N. 1.4122) (UNI EN 10088)
from 4 to 48 mm: HV 470 - 580, HRC 47 - 54
from 50 to 100 mm: HV 435 - 530, HRC 44 - 51

Austenitic stainless steel A4 – AISI 316 L (W.N. 1.4404)
from 3 to 5 mm: resistance 1176 - 1274 N/mm² - 120 - 130 Kg/mm²
from 6 to 27 mm: resistance 882 - 981 N/mm² - 90 - 100 Kg/mm²

Austenitic stainless steel AISI 301 (W.N. 1.4310)
from 28 to 100 mm: resistance 1000 - 1200 N/mm² - 102 - 122 Kg/mm²

Standard surface finish:
from 3 to 5 mm: phosphated and oiled
from 6 to 300 mm: self-finished and oiled

Product Categories : Lock Washers > Retaining Rings
