Black Oxide DIN6921 Hex Serrated Flange Bolt Specifications

$0.01

≥1000
Piece/Pieces

Payment Type:

L/C,T/T,D/P,Paypal

Incoterm:

FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DDP,DDU,Express Delivery

Min. Order:

1000 Piece/Pieces

Transportation:

Ocean,Land,Air,Express

Port:

Shanghai,Ningbo

Contact Now

 Chat Now

Product Description

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery

< >

Overview

Product Attributes

Brand: LY

Material: Carbon Steel

Grade: 4.8, 8.8, 10.9, 12.9

Coating: Black Oxide

Supply Ability & Additional Information

Packaging: 1. Bulk packing(Cartons+plastic Bags) 2. Small boxes packing 3. According to the customer's requirements

Productivity: 50 Ton/Month

Transportation: Ocean,Land,Air,Express

Place of Origin: Jiangsu, China

Supply Ability: 50 Ton/Month

HS Code: 731815

Port: Shanghai,Ningbo

Payment Type: L/C,T/T,D/P,Paypal

Incoterm: FOB,CFR,CIF,EXW,FAS,FCA,CPT,CIP,DDP,DDU,Express Delivery

Packaging & Delivery

Selling Units:: Piece/Pieces

Package Type:: 1. Bulk packing(Cartons+plastic Bags) 2. Small boxes packing 3. According to the customer's requirements

Picture Example:

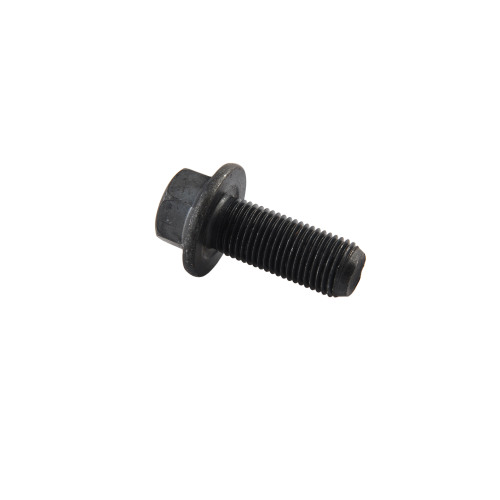

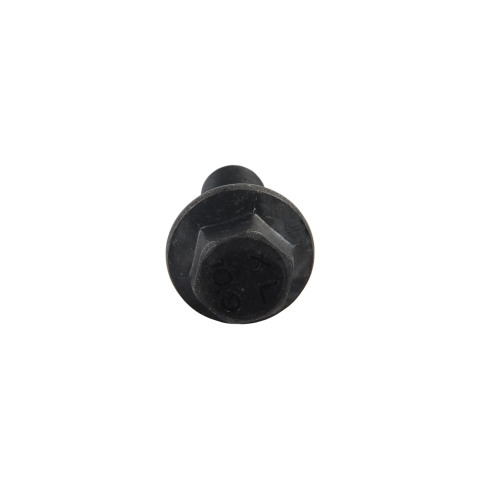

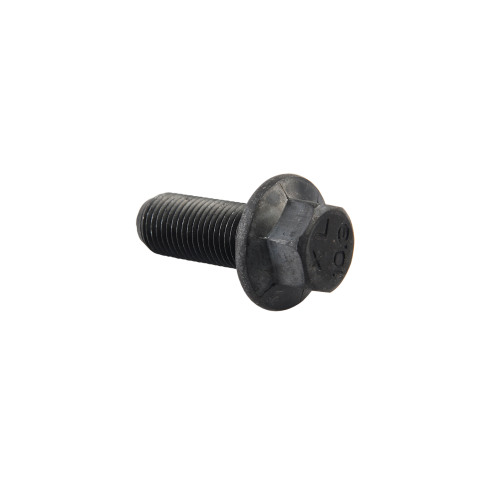

Black Oxide Din6921 Hex Serrated Flange Bolts

DIMENSIONS TABLE
Screw Thread	M5								M6								M8								M10								M12								M14								M16								M20
Screw Thread	d	P	Coeff.	0.8	1	1.25	1.5	1.75	2	2	2.5	Fine thread-1	/	/	1	1.25	1.5	1.5	1.5	/	/	1	1.25	/	/	/	/	b	L≤125	16	18	22	26	30	34	38	46	125＜L≤200	/	/	28	32	36	40	44	52	L＞200	/	/	/	/	/	/	57	65	c	min	1	1.1	1.2	1.5	1.8	2.1	2.4	3	da	Form A	max	5.7	6.8	9.2	11.2	13.7	15.7	17.7	22.4	Form B	max	6.2	7.4	10	12.6	15.2	17.7	20.7	25.7	dc	max	11.8	14.2	18	22.3	26.6	30.5	35	43	ds	max	5	6	8	10	12	14	16	20	min	4.82	5.82	7.78	9.78	11.73	13.73	15.73	19.67	du	max	5.5	6.6	9	11	13.5	15.5	17.5	22	dw	min	9.8	12.2	15.8	19.6	23.8	27.6	31.9	39.9	e	min	8.71	10.95	14.26	16.5	17.62	19.86	23.15	29.87	f	max	1.4	2	2	2	3	3	3	4	k	max	5.4	6.6	8.1	9.2	11.5	12.8	14.4	17.1	k1	min	2	2.5	3.2	3.6	4.6	5.1	5.8	6.8	r1	min	0.25	0.4	0.4	0.4	0.6	0.6	0.6	0.8	r2	max	0.3	0.4	0.5	0.6	0.7	0.9	1	1.2	r3	min	0.1	0.1	0.15	0.2	0.25	0.3	0.35	0.4	r4	≈	3	3.4	4.3	4.3	6.4	6.4	6.4	8.5	s	max=nominal size	8	10	13	15	16	18	21	27	min	7.78	9.78	12.73	14.73	15.73	17.73	20.67	26.67	t	max	0.15	0.2	0.25	0.3	0.35	0.45	0.5	0.65	min	0.05	0.05	0.1	0.15	0.15	0.2	0.25	0.3

From the quality control of incoming raw materials, process control of production lines, and finished product screening control, we ensure that 99% of products meet technical requirements.

All our products are subjected to strict test and inspection in each process by the workers and QC personnel periodically, starting from the raw materials delivered to the factory. The products shall be tested and inspected to be qualified before they are passed down to the next process.
